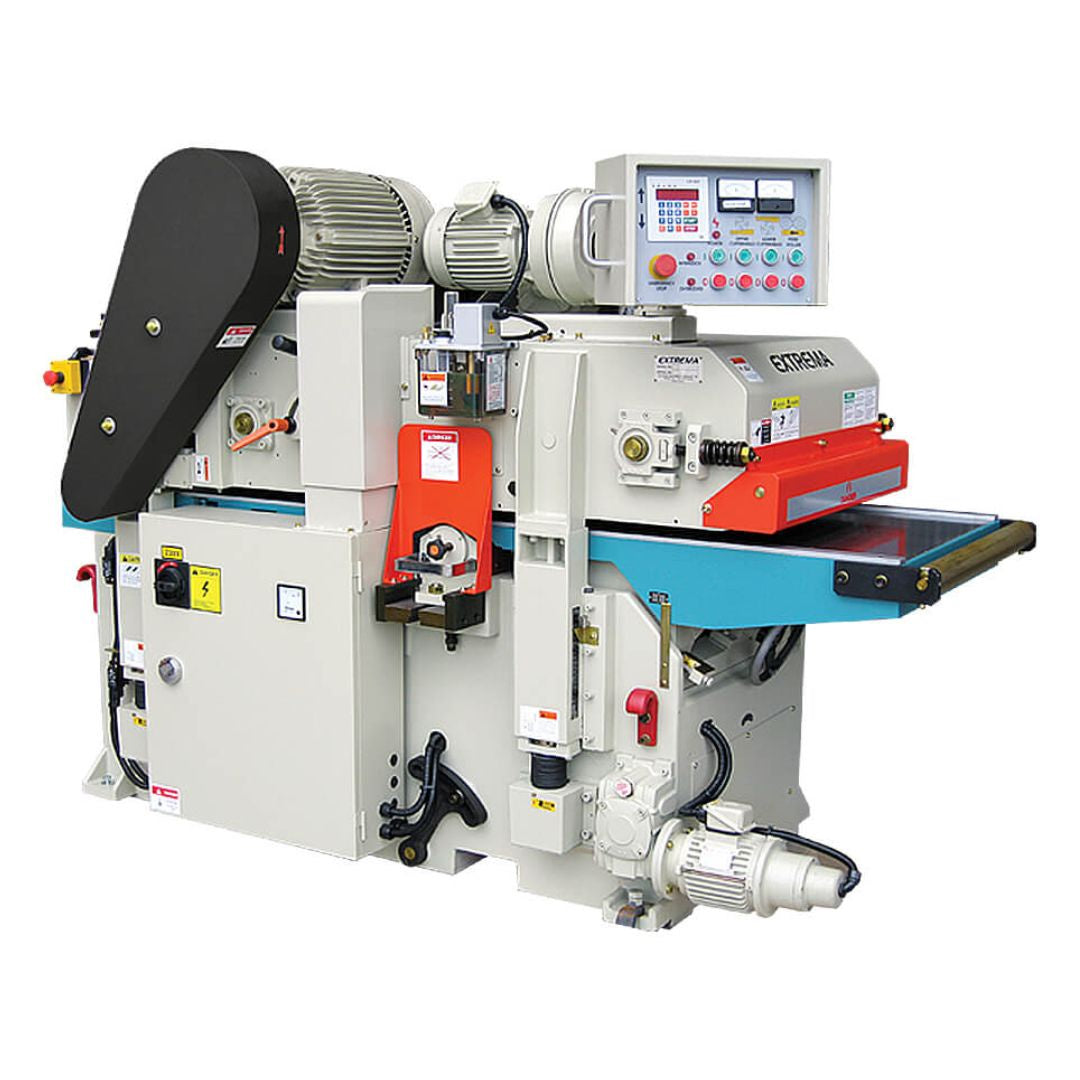

Extrema Titan XP Series 16" Double Sided Planer

• Jointer style infeed for excellent de-cupping capability
• Feed speeds from 20-65 ft/min
• Easy access slide out cutter head
• Digital PLC thickness controller
• 6000 RPM cutter heads
• Swivel control panel
• Carpet feed pressure adjustment
• Wye-delta soft start
• Hard chrome plated bed
• Amp load meters
• Available with the VECTOR, STEALTH, MACH,or straight cutters
• Automatic lubrication w/ low oil shutdown
• Sectional chipbreaker

Specs:

• Horsepower: 20 / 10 HP
• Voltage: 230V / 460V
• Phase(s): 3 PH
• Width: 16"
• Top Motor: 15 HP
• Bottom Motor: 10 HP
• Elevation Motor: 1/2 HP
• Feed Motor: 2 HP
• Max Thickness: 7"
• Min Thickness: 3/8"
• Min Stock Length: 12"
• Cutterhead RPM: 6000
• Top Cutter Access: Rear
• Bottom Cutter Access: Slide Out
• Disc Brakes: No
• Feed System: Carpet
• Feed Speed: 20-65 ft/min
• CFM Requirements: 2500
• AMPS (220V/440V): 67A / 34A
• Weight: 5000 lbs
