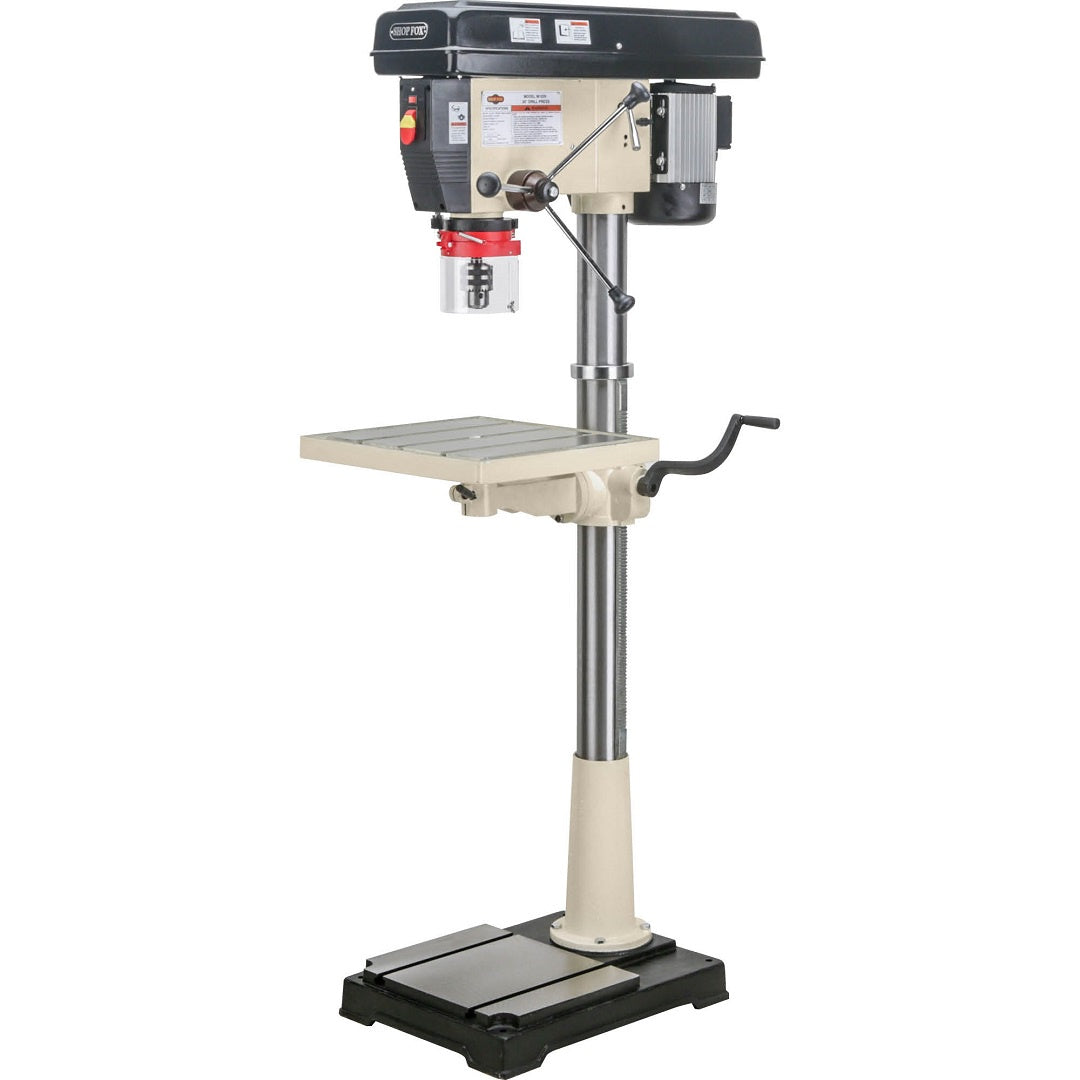

Shop Fox 20" Floor Drill Press

SPECIFICATIONS:

• Motor: 1-1/2 HP, 120V/240V (prewired for 120V), single-phase, 18A/9.4A
• Swing: 20"
• Drill chuck: 5/8"
• Drilling capacity: 1-1/4" mild steel
• Arbor: JT-3
• Spindle speed: 12, 180–3240 RPM
• Spindle travel: 4-3/4"
• Table size: 16-3/4" W x 18-3/4" L
• Table swing: 360 degrees
• Table tilt: 90° left/right
• Footprint: 18" W x 23" L
• Overall dimensions: 21" W x 34-3/4" L x 70-3/4" H
• Approximate shipping weight: 317 lbs.

FEATURES:

• Features table T-slots and coolant channel
• Crank handle operated rack-and-pinion vertical table movement
• 12 Speeds
• Threaded depth stop
• Built-in light (120V Only)
• 4-3/4 in. Spindle travel
